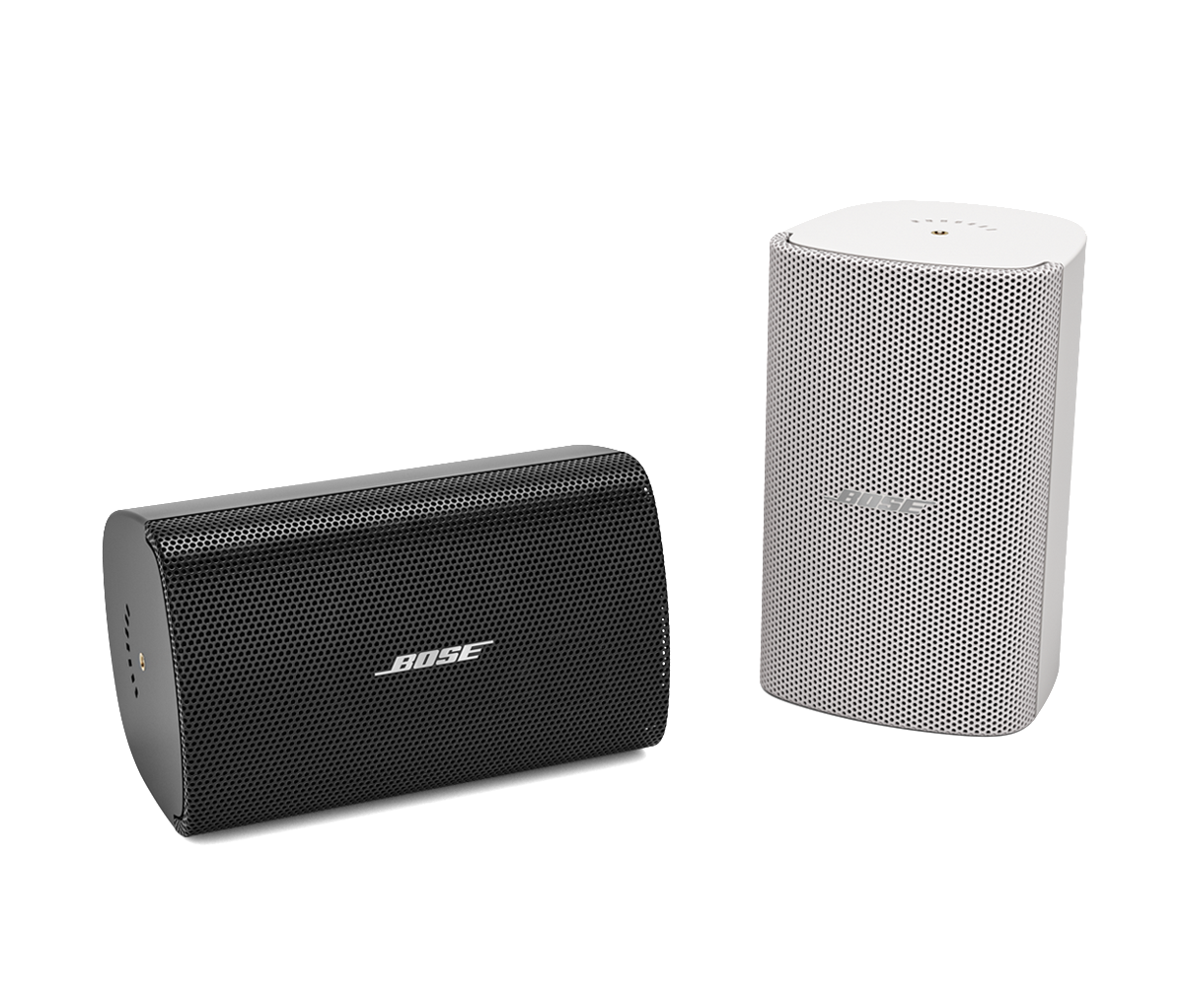

OpenBox BOSE FreeSpace Model 32SE Surface-Mount loudspeaker
Thumbnail 1
Thumbnail 2

OpenBox BOSE FreeSpace Model 32SE Surface-Mount loudspeaker

11,499 ₹ 78,400

Customize Your Product

Select Condition

Product Description

32 W continuous power with multi‑tap line transformer options (1 /2 /4 /8 /16 /32 W) for 70 V / 100 V systems.

Frequency range of 90 Hz to 16 kHz (±3 dB) with 132° conical dispersion.

Sensitivity ~ 86 dB SPL @ 1 W / 1 m; maximum acoustic output ~ 101 dB SPL.

Weather‑resistant surface‑mount design with adjustable U‑bracket for horizontal or vertical

🔧 Key Specifications & Features

  • Power / Taps: 32 W continuous; multi‑tap transformer for 70 V & 100 V systems (1, 2, 4, 8, 16, 32 W) — also a 4 Ω passive version.
  • Frequency Range: 90 Hz to 16 kHz (±3 dB)
  • Sensitivity: 86 dB SPL @ 1 W, 1 m (pink noise) (active or passive)
  • Max Acoustic Output: ~101 dB SPL @ 1 m (pink noise)
  • Dispersion: ~132° conical (‑6 dB, 1–4 kHz average)
  • Driver: 11.4 cm (4.5”) Bose HVC (Helical Voice Coil) full‑range environmental driver with active equalization
  • Mounting / Enclosure: Surface‑mount design with U‑bracket that allows horizontal or vertical mounting and tilt adjustment
  • Mechanical / Dimensions: ~ 22.9 × 15.2 × 14.1 cm (W × H × D), weighs ~ 2.3 kg
  • Connectors: Screw terminals for 70/100 V taps, or hex‑nut posts for the 4 Ω variant
  • Weather / Environment: Designed for indoor / outdoor use; weather‑resistant hardware and materials
  • Compatibility: Can be integrated into distributed audio / PA / paging systems, especially in commercial installations.
